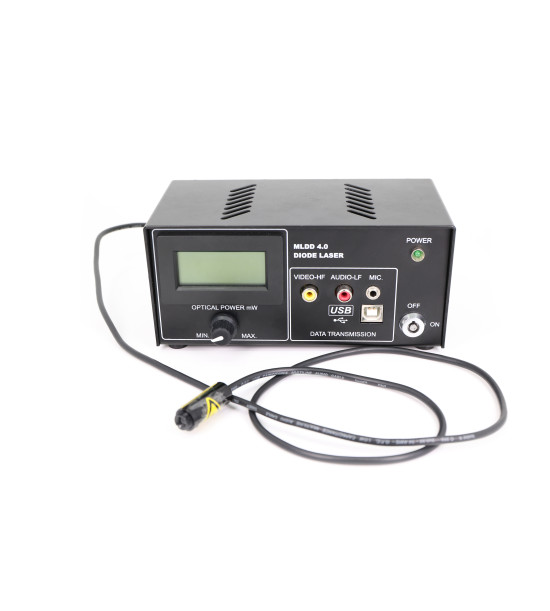

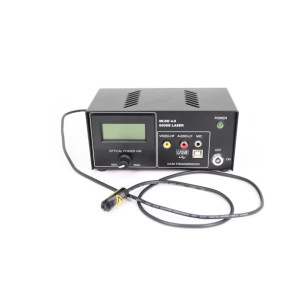

Laser Diode MLDD 4.0 - 1mW with Power Supply
21-0802
320,00 €
MLDD (Modulated Laser Diode Device) works with adjustable power output ranging from 0.2 to 0.99 mW.
Semi-conductor laser MLDD 4.0 - (Modulated laser-diode device). The laser works with adjustable power output ranging from 0.2 to 0.99 mW (produced also in 3mW version). The current output power is immediately displayed on the LCD.
The laser unit is connected to control unit using cable to prevents any laser oscillation in the experiment setup. The laser can be also used for audio and video transmission. The power supply is included.
Specification:
- Laser type: Diode
- Wavelength: 635 nm
- Output Power: Pmax < 0,2 - 0,99 mW
- Beam Dimensions: 4 x 2 mm
- Laser Class: Class 2 Laser Product - Pmax < 1 mW
- Power supply requirements: 12V DC / 500 mA
Dimensions:
- Box: 100 mmW x 60 mmH x 150 mmL
- Module: 12 mmD x 40,5 mmL
