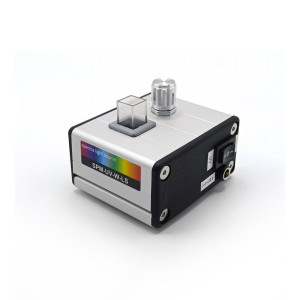

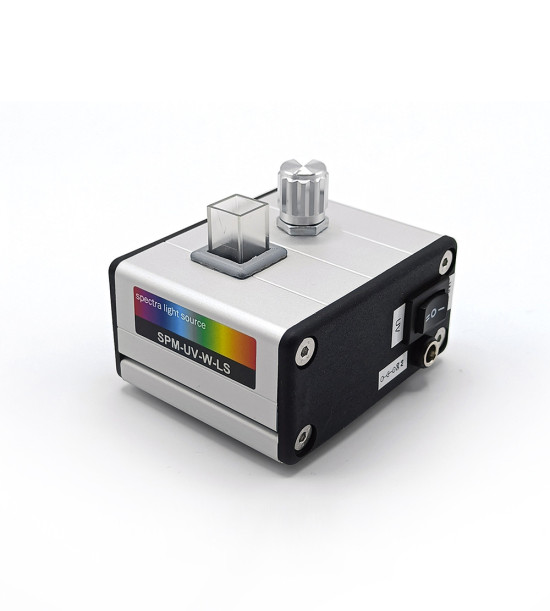

SPM-UV-W-LS consists of two different light sources – white halogen bulb light source and UV LED diode light source (365 nm). Switch located on the top of the device serves as the light sources selector (UV and WHITE). It is suitable for measurement of absorption and luminosity (fluorescence, phosphorescence, etc) of various material spectrums. SPM-UV-W-LS has built in cuvette holder which is also suitable for small solid materials. Cuvettes are plastic tetrahedral containers for measurement of various spectrums of liquid samples. A cuvette should be inserted into a gap situated at the top of the device. Bulky samples should be placed directly between SPM-UV-W-LS and Spectrometer. Mutual position of SPM-UV-W-LS and Spectrometer could be fixed by a lead rail.
The set contains:
• light source
• cuvette (20 pcs) for measuring spectra of liquid samples
• guiding rail (needed for adjusting position of source and spectrometer)
• software module for measurements of absorption spectrum
• power supply 100-240 V AC / 9 V DC
