RODS with Magnet Board (Ray Optics Demonstration Set)

21-0402

239,00 €

This set has been designed for simple and clear demonstration of the principles of geometrical optics - transmission, reflection and refraction.

More details

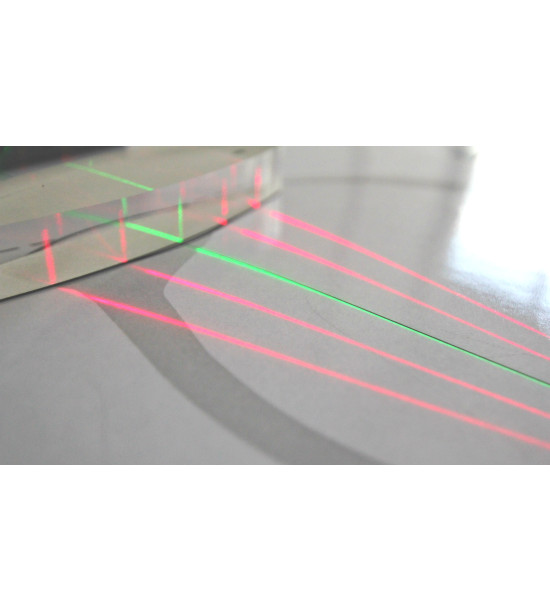

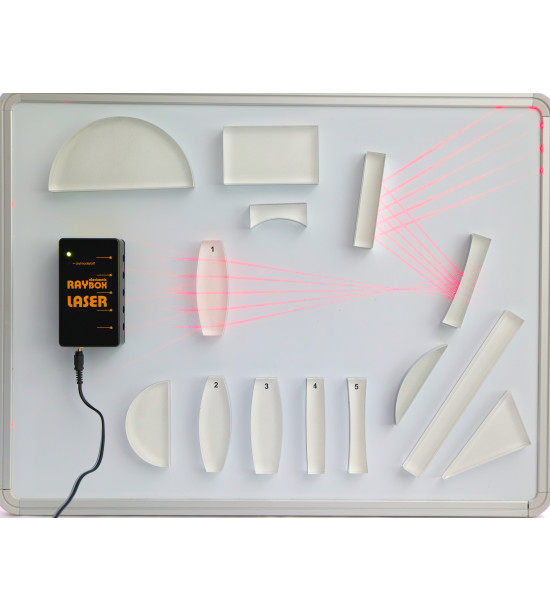

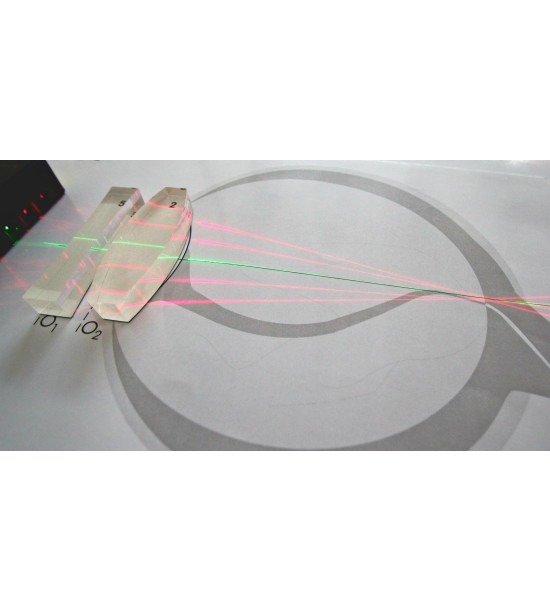

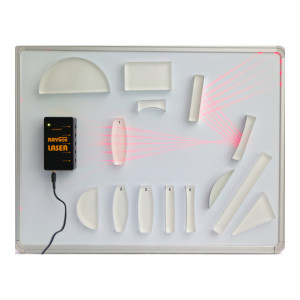

The set has turned out to be the best-selling product due to its simple design, user-friendliness and clear demonstration of basic principles of geometrical optics. Complemented with laser light source (sold separately) the set improves the quality of teaching and offers the new possibilities in comparison with the classic incandescent lamp. With the use of complementary Laser Ray Box, it is possible to demonstrate most of the elementary optic principles quickly and intuitively. Moreover the demonstration of beams passing through the combination of several optical elements is possible, which enables effective demonstration and modelling of basic optical devices. Another remarkable advantage arises from very low demand for room light conditions. Ray Optics Demonstration Set using Laser Ray Box can be used in standard classrooms without any additional room darkening. It allows very good demonstration and visualization of the following optical effects: transmission of the light through the convex (concave) lens, transmission effect of an optical prism, reflection on the planar convex and concave mirror, refraction of the light, index of refraction values and others. The set also demonstrates the function of healthy, short-sighted and far-sighted vision and the correction of these aberrations by glasses. Furthermore the set demonstrates the function of both, Galileo and Kepler telescopes, as well as photo camera, etc. The effect of the lens spherical aberration and its correction, the demonstrations of absolute reflection in the optical fiber are interesting and easy to demonstrate as well. All elements are taped with magnetized foil at the bottom, allowing intuitive attachment to a magnetic board The set includes 8 different lenses, 3 types of mirrors, plan-parallel plate, right - angle prism, model of optical fiber and 8 example sheets. This version does include magnetic board. Ray Optics Demonstration Set contains: • Instruction manual – printed and video guide with tutorials of the experiments on CD • Optical models (14 pcs) – 8 different lenses, 3 types of mirrors, planparallel plate, right-angle prism, model of optical fibre • Magnet board with support stand (version with magnetic board) • Example sheets (8 pcs) for very simple and quick preparation of demonstration. The demonstration is done quickly if the desired objects are located on assigned positions on the sheet A – model of the human eye B – photo camera C – Galileo telescope D – Kepler telescope E – spherical aberration of a lens, and its correction F – refraction and reflection demonstration sheet X - Significant rays - convex Y - Significant rays - concave
